MUSCULOSKELETAL RADIOLOGY / ORIGINAL PAPER
An observational pilot study comparing diffusion tensor neurography findings of the median nerve in carpal tunnel syndrome patients and healthy controls
1
Department of Radiodiagnosis, All India Institute of Medical Sciences (AIIMS), Patna, India
Submission date: 2025-03-26
Acceptance date: 2025-12-15
Publication date: 2026-09-04
Corresponding author
Sreehari C.S.
Department of Radiodiagnosis, All India Institute of Medical Sciences (AIIMS), AIIMS Patna, Phulwari Sharif, Bihar, India, PIN: 801507
Department of Radiodiagnosis, All India Institute of Medical Sciences (AIIMS), AIIMS Patna, Phulwari Sharif, Bihar, India, PIN: 801507
Pol J Radiol, 2026; 91(1): 421-428
KEYWORDS
TOPICS
ABSTRACT
Purpose:
To determine normative fractional anisotropy (FA) and apparent diffusion coefficient (ADC) values of the median nerve in the healthy population across various age groups and genders and to derive cut-off FA and ADC values for diagnosing carpal tunnel syndrome (CTS).
Material and methods:

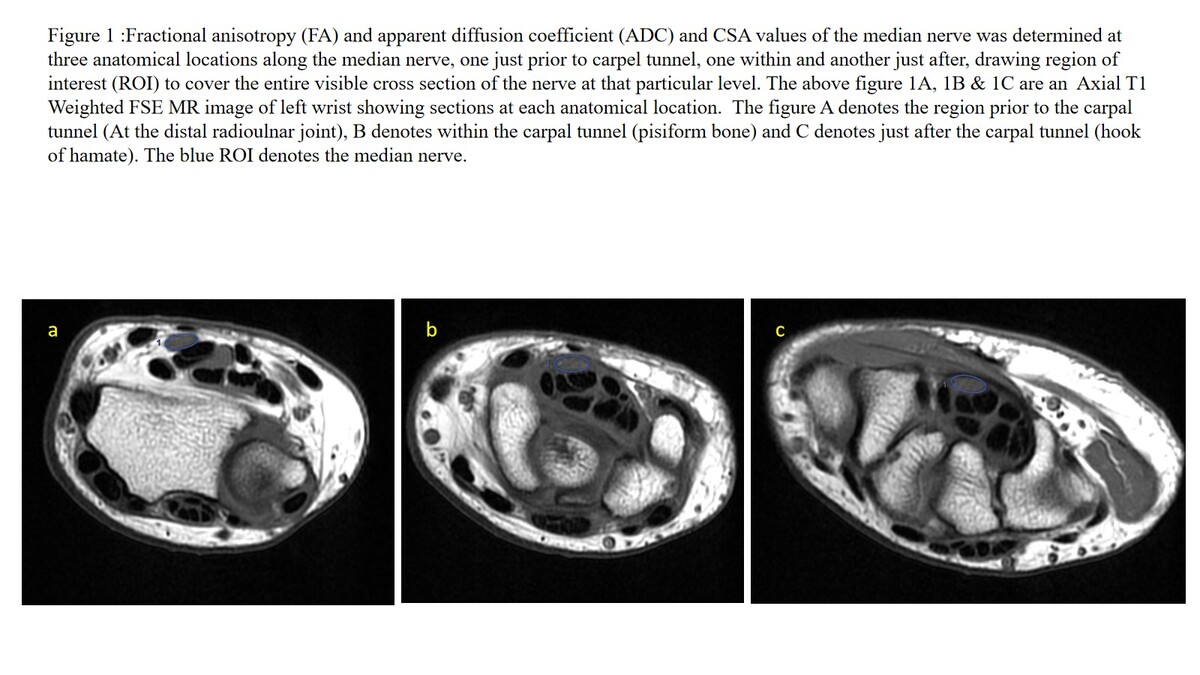

After ethics board approval and written informed consent were obtained, 60 healthy volunteers (42 women, 18 men) and 20 patients (14 women, 6 men) were studied. Magnetic resonance (MR) neurography with diffusion-tensor imaging (DTI) was performed in all study participants at 3.0 T by using a single-shot echo-planar imaging sequence (repetition time msec/echo time msec, 10,123/40; b-value, 1000 sec/mm2). FA and ADC of the median nerve were determined at 3 locations: the levels of the distal radioulnar joint, pisiform bone, and hamate bone.
Results:
Normative FA and ADC values were calculated at different anatomic locations. FA and ADC did not differ between men and women (p = 0.46 and p = 0.41, respectively) or age dependence. There was significant difference between healthy volunteers and patients with carpal tunnel syndrome (p = 0.001 for both FA and ADC). An FA threshold of 0.545 and an ADC threshold of 0.822 × 10–3 mm2/sec might be used in the diagnosis of carpal tunnel syndrome. Cross sectional area threshold of 10.8 mm2 at the carpal tunnel (inlet) was also noted for diagnosis of carpal tunnel syndrome.
Conclusions:
DTI is a valuable tool in diagnosing CTS. Patients with CTS demonstrate lower FA and higher ADC values. FA and ADC threshold values might be used to diagnose carpal tunnel syndrome.
To determine normative fractional anisotropy (FA) and apparent diffusion coefficient (ADC) values of the median nerve in the healthy population across various age groups and genders and to derive cut-off FA and ADC values for diagnosing carpal tunnel syndrome (CTS).
Material and methods:
After ethics board approval and written informed consent were obtained, 60 healthy volunteers (42 women, 18 men) and 20 patients (14 women, 6 men) were studied. Magnetic resonance (MR) neurography with diffusion-tensor imaging (DTI) was performed in all study participants at 3.0 T by using a single-shot echo-planar imaging sequence (repetition time msec/echo time msec, 10,123/40; b-value, 1000 sec/mm2). FA and ADC of the median nerve were determined at 3 locations: the levels of the distal radioulnar joint, pisiform bone, and hamate bone.
Results:
Normative FA and ADC values were calculated at different anatomic locations. FA and ADC did not differ between men and women (p = 0.46 and p = 0.41, respectively) or age dependence. There was significant difference between healthy volunteers and patients with carpal tunnel syndrome (p = 0.001 for both FA and ADC). An FA threshold of 0.545 and an ADC threshold of 0.822 × 10–3 mm2/sec might be used in the diagnosis of carpal tunnel syndrome. Cross sectional area threshold of 10.8 mm2 at the carpal tunnel (inlet) was also noted for diagnosis of carpal tunnel syndrome.
Conclusions:
DTI is a valuable tool in diagnosing CTS. Patients with CTS demonstrate lower FA and higher ADC values. FA and ADC threshold values might be used to diagnose carpal tunnel syndrome.
REFERENCES (25)
1.
Hiltunen J, Suortti T, Arvela S, Seppä M, Joensuu R, Hari R. Diffusion tensor imaging and tractography of distal peripheral nerves at 3 T. Clin Neurophysiol 2005; 116: 2315-2323.
3.
Basser PJ, Mattiello J, LeBihan D. MR diffusion tensor spectroscopy and imaging. Biophys J 1994; 66: 259-267.
4.
Stein D, Neufeld A, Pasternak O, Graif M, Patish H, Schwimmer E, et al. Diffusion tensor imaging of the median nerve in healthy and carpal tunnel syndrome subjects. J Magn Reson Imaging 2009; 29: 657-662.
5.
Cercignani M, Horsfield MA. The physical basis of diffusion-weighted MRI. J Neurol Sci 2001; 186 Suppl 1: S11-S14.
6.
Le Bihan D. Looking into the functional architecture of the brain with diffusion MRI. Nat Rev Neurosci 2003; 4: 469-480.
7.
Mori S, Zhang J. Principles of diffusion tensor imaging and its applications to basic neuroscience research. Neuron 2006; 51: 527-539.
8.
Skorpil M, Karlsson M, Nordell A. Peripheral nerve diffusion tensor imaging. Magn Reson Imaging 2004; 22: 743-745.
9.
Koyuncuoglu HR, Kutluhan S, Yesildag A, Oyar O, Guler K, Ozden A. The value of ultrasonographic measurement in carpal tunnel syndrome in patients with negative electrodiagnostic tests. Eur J Radiol 2005; 56: 365-369.
10.
Graham B. The value added by electrodiagnostic testing in the diagnosis of carpal tunnel syndrome. J Bone Joint Surg Am 2008; 90: 2587-2593.
11.
Bland JD. A neurophysiological grading scale for carpal tunnel syndrome. Muscle Nerve 2000; 23: 1280-1283.
12.
Khalil C, Hancart C, Le Thuc V, Chantelot C, Chechin D, Cotten A. Diffusion tensor imaging and tractography of the median nerve in carpal tunnel syndrome: preliminary results. Eur Radiol 2008; 18: 2283-2291.
13.
Meek MF, Stenekes MW, Hoogduin HM, Nicolai JPA. In vivo three-dimensional reconstruction of human median nerves by diffusion tensor imaging. Exp Neurol 2006; 198: 479-482.
14.
Andreisek G, White LM, Kassner A, Sussman MS. Evaluation of diffusion tensor imaging and fiber tractography of the median nerve: preliminary results on intrasubject variability and precision of measurements. Am J Roentgenol 2010; 194: W65-W72. DOI: https://doi.org/10.2214/AJR.09....
15.
Guggenberger R, Markovic D, Eppenberger P, Chhabra A, Schiller A, Nanz D, et al. Assessment of median nerve with MR neurography by using diffusion-tensor imaging: normative and pathologic diffusion values. Radiology 2012; 265: 194-203.
16.
Koh SH, Kwon BC, Park C, Hwang SY, Lee JW, Kim SS. A comparison of the performance of anatomical MRI and DTI in diagnosing carpal tunnel syndrome. Eur J Radiol 2014; 83: 2065-2073.
17.
Paniandi V, George J, Goh KJ, Tan LK. MR neurography of median nerve using diffusion tensor imaging (DTI) and its efficacy to diagnose carpal tunnel syndrome in Malaysian population. Neurol Asia 2018; 23: 17-25.
18.
Wang H, Ma J, Zhao L, Wang Y, Jia X. Utility of MRI diffusion tensor imaging in carpal tunnel syndrome: a meta-analysis. Med Sci Monit 2016; 22: 736-742.
19.
Kwon BC, Jung KI, Baek GH. Comparison of sonography and electrodiagnostic testing in the diagnosis of carpal tunnel syndrome. J Hand Surg Am 2008; 33: 65-71.
20.
Mackinnon SE, Dellon AL, Hudson AR, Hunter DA. Chronic human nerve compression – a histological assessment. Neuropathol Appl Neurobiol 1986; 12: 547-565.
21.
Moran L, Perez M, Esteban A, Bellon J, Arranz B, del Cerro M. Sonographic measurement of cross-sectional area of the median nerve in the diagnosis of carpal tunnel syndrome: correlation with nerve conduction studies. J Clin Ultrasound 2009; 37: 125-131.
22.
Guggenberger R, Nanz D, Bussmann L, Chhabra A, Fischer MA, Hodler J, et al. Diffusion tensor imaging of the median nerve at 3.0 T using different MR scanners: agreement of FA and ADC measurements. Eur J Radiol 2013; 82: e590-e596. DOI: https://doi.org/10.1016/j.ejra....
23.
Taşdelen N, Gürses B, Kiliçkesmez Ö, Firat Z, Karlikaya G, Tercan M, et al. Diffusion tensor imaging in carpal tunnel syndrome. Diagn Interv Radiol 2012; 18: 60-66.
24.
Bulut HT, Yildirim A, Ekmekci B, Gunbey HP. The diagnostic and grading value of diffusion tensor imaging in patients with carpal tunnel syndrome. Acad Radiol 2014; 21: 767-773.
25.
Kwon BC, Koh SH, Hwang SY. Optimal parameters and location for diffusion-tensor imaging in the diagnosis of carpal tunnel syndrome: a prospective matched case-control study. AJR Am J Roentgenol 2015; 204: 1248-1254.
